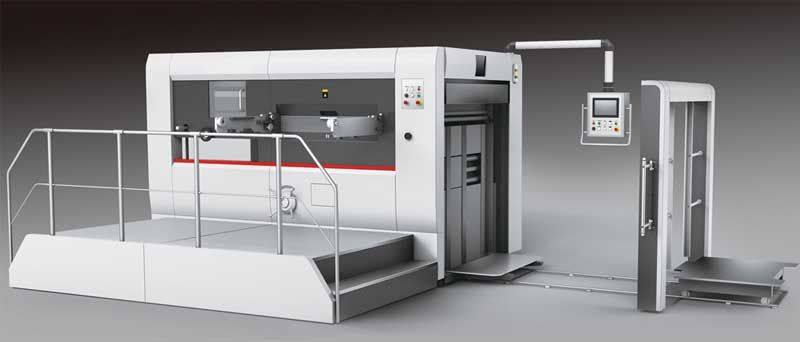

Semi-automatic Die Cutting Machine

Features:

1. Paper feeding part: Pre code paper, paper feeding platform, pneumatic bench. Pre code paper: Cylinder sliding angle aluminum, easy and fast to operate. The operator needs to put the processed paper into the pre code paper trolley, and put the trolley back to paper feeding platform to continue the next working when the paper sets the lower limit. Paper feeding platform: Automatic upgrade step distance can be set according to the paper amount, the operation is simple and fast. With the characteristics of shorter feeding distance and low labor intensity. Pneumatic bench: The operator stand on the working platform, pneumatic adjusting the height of machine according to different height of operator, easy to operate, saving time and effort.

2. Positioning section: the former regulations, the regulatory side. Former regulation: The oscillating former swinging on the paper side of a small impact, high positioning precision, with four sets of regulations former detection precision(Taiwan Rikko) fiber switch, the paper is in place to detect and avoid paper waste. Side regulation: You can choose different products based on the regulatory side, no need to replace components, easy adjustment and quick.

3.Die cutting section: gripper, die cutting frame, die cutting steel, transmission structure, host bottom station, the moving platform and the platform, intermittent structure, pneumatic clutch and brake. Die cutting pressure can overall regulating and can gripper edge regulating alone, manual slow down before turning convenient save Labor.

Technicalparameter

 Introduction

Feeding and pre-stack

1.Safe and reliable pre-stack device makes paper-pile tidier.

2.Economic and practical manual paper feeding efficiently solves the problems , such as wrapping paper’s difficulty entering and paper’s not reaching the right position

3.Automatic rising paper feeding platform makes work more convenient and quick.

4. It is convenient to adjust the stable front lay and side lay . LCD displays the machine state,  trouble reason and troubleshooting , which fully actualizes man-machine communication  and makes operation more convenient.

Die cutting and creasing

1. Diecutting chase fixed accurately by pneumatic lock system

2. Diecutting plate is putted in and out by air floating device

3. Electric clutch system of main chain can assure the chain steady when it is stopped at high speed

4. Main chain and assist chain is lubricated periodically controlled by PLC

5. Protection window of diecutting can hold the main body clean

Main body

1. Adopt automatic centralized lubricating system and setting main chain lubricating system by HMI

2. Patented design shock absorption system can prolong the life of main body and increase the pressure

3. The intermittent gearbox made in Taiwan can assure the accurate registration and decrease the gripper attack

Delivery part

1.It is easy to adjust front-rear even and side even ensuring tidy delivery.

2.Automatic paper delivery platform is high enough to make delivery more convenient and  work efficiency improved.

3.Non-stop sampling mechanism can actualize the inspection of die cutting sheets at any  moment.
