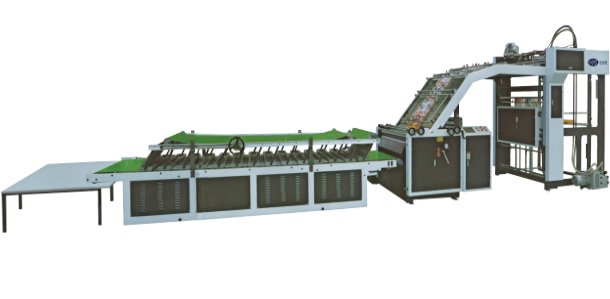

Basic Configuration and Technical Specification

1. The most high-end electrical control system, computerized high-speed lamination, up to 13,000 sheets per hour;

2. The upper paper feeder adopts high-speed paper feeder to ensure accurate paper feeding under the condition of high-speed paper feeding;

3. Bottom paper feeding: The bottom paper conveying structure of the suction belt is driven by a servo motor to make the conveying distance of the bottom paper precise and smooth.

4. High-precision coating and conveying with automatic page control of paper and gluing wheel side gluing mechanism, high-speed operation without glue overflow, and adjustable glue return;

5. Use multiple sets of photoelectric sensor and the bottom line to advance the relative position, so that the servo motors on both sides of the face paper are driven independently to compensate for the upper and lower paper alignment, which is accurate and smooth;

6. The man-machine interface is applied, which is convenient for operation and can automatically detect the operation status, abnormal display and work record, stable performance, CE standard.

Main Parameter

Details Of Machine

Top feeding unit

• High precision high speed automatic feeder, feeding smoothly.

• Put the paperboard on the flat plate, this unit automatically up to the designated location,

• feeder deliver the paperboard by vacuum absorption.

Bottom feeding unit

• Inverter speed control, big power air suction sys, make machine and also the sheet running stably during high speed, ensure feeding accuracy




• Conveying and accuracy and not deflect. The transmitting belt has strong adaptability of the corrugated paper.

Electrical unit

According to the European CE standard design, to ensure that the whole machine is stable, high efficiency, low failure, combined with the man-machine interface and PLC to warn, detection the fault, operating speed and other information displayed on the screen.

Glue unit

• The glue roller is made of stainless steel and anilox roller ,it can reduce the quantity of the glue and improve the intensity of the cartons. Deft design keep the carton perfect.





• Automatic glue supplementary system, automatically added the loss glue amount. And match the recycling of the glue, avoid the waste of glue consumption





• Metering roller linear velocity scientific design, ensure uniform glue quantity ,at the same time to avoid rejection glue when high speed running
